Xiongshi Display

Factory price A grade CSOT 55 inch ST5461D08-2 VA LCD 3840*2160 4k 60Hz TV open cell screen panel replacement repair

Factory price A grade CSOT 55 inch ST5461D08-2 VA LCD 3840*2160 4k 60Hz TV open cell screen panel replacement repair

Specification
Model Number
Color
Product Parameter
Brand
CSOT
Panel Model
ST5461D08-2
Size
55"
Active Area
1209.6×680.4
Composition
CELL
Outline Size
1219.6×691.9
Form Factor
Flat Rectangle
Typ. Depth
1.34mm
TN/VA/IPS
VA
Backlight
No B/L
Resolution
3840×2160
Backlight Driver
-
Contrast Ratio
5000:1
Interface
V-by-One
Surface
AG2
Pins
51 pins
View Angle
89/89/89/89
Frequ ency
60Hz
Best View
Symmetry
Touch
No
Colors
1.07B
Work Temp.
0~50°C
NTSC Ratio
84%
Storage Temp.
-20~60°C
sRGB
100%
MP Year
Q3,2017
Adobe RGB
84%
Amount
112 pcs / box
DCI-P3
88%
Net Weight
350 Kgs (Max.)
Brightness
0
Carton Size (L×W×H)
1420×1120×1012 mm (L×W×H)
Production State
In production
Supplier
Xiong Shi

CSOT ST5461D08-2 Summary

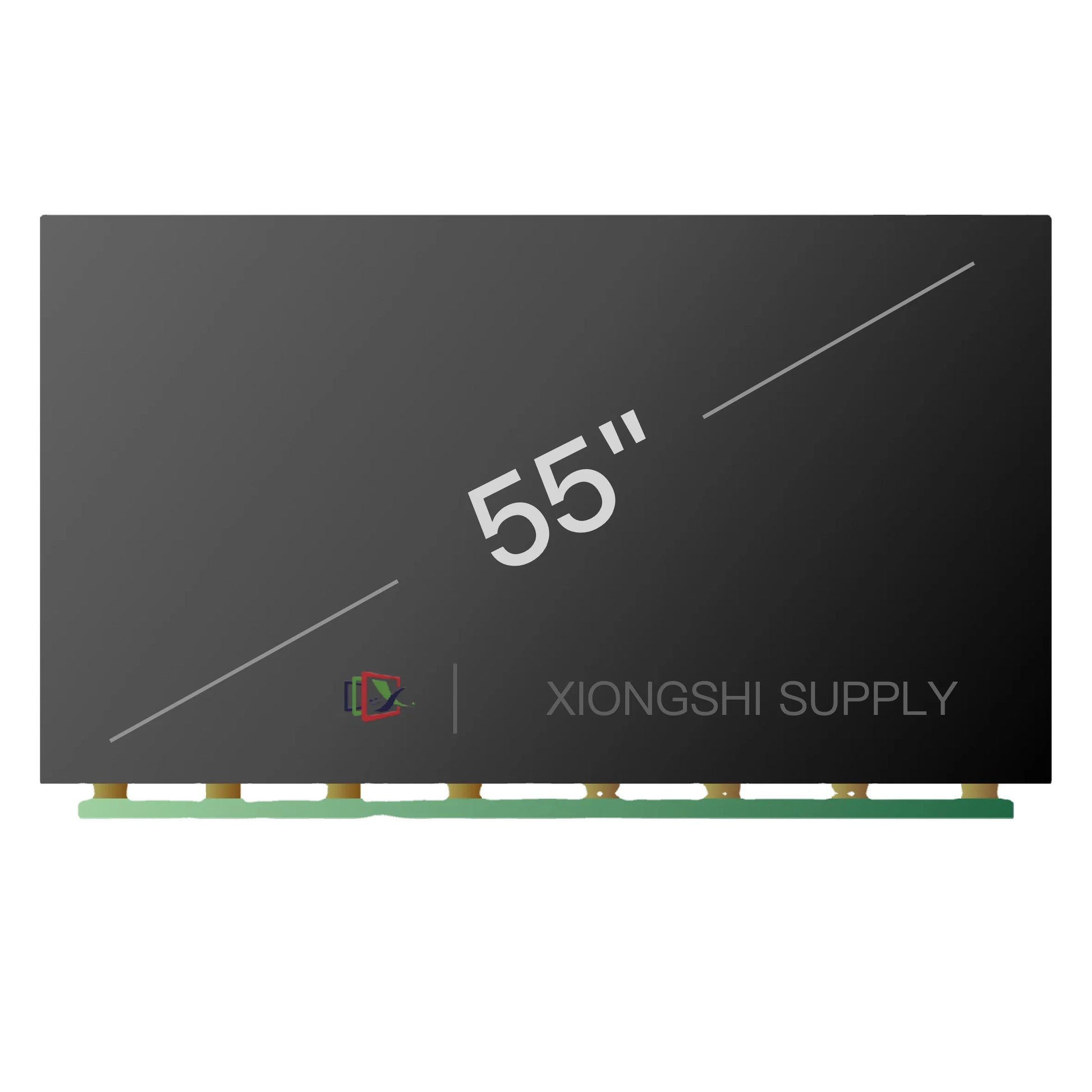

The ST5461D08-2 is a 55" inch diagonal display panel product from China Star Optoelectronics Technology Co., Ltd (hereafter called CSOT), without backlight, without touch screen.
This TV open cell has a resolution of 3840×2160(also known as 4k) and a contrast ratio of 5000:1. It is a high-resolution, high-contrast TV display panel with 100% SRGB gamut coverage, perfect for embedding in your TV to improve the viewing experience for your brand's users.
It features an operating temperature range of 0~50°C , a storage temperature range of -20~60°C . Based on its features, XiongShi recommend that this model be applied to TV Sets etc. According to the information stored in XiongShi this model mass production on Q3,2017, Now this model is in production. We inputted this model's specification on Jan 9 2020 for the first time, and the latest update on April 22, 2023.
If you want to embed this product in your future product, XiongShi strongly recommends that you contact our customer service for the latest production and specification details.
Panel Knowledge

Practical tips for selecting a display panel:

There are three main types of display panels in the market, namely TN, VA, and IPS. Each type of panel has a unique advantage, and there is no single best type of panel. Below is a table outlining the functional characteristics of each:
Colors
Response Time
Contrast Ratio
 View Angle
TN

✓✓✓
✓✓

VA
✓✓

✓✓✓
✓✓
IPS
✓✓✓
✓✓
✓✓
✓✓✓
TN panels' greatest advantage lies in their response times, and they reduce screen blurring, making them ideal for FPS and esports games.
They are also a great option for watching sports events or action movies.

VA panels have a static contrast ratio that can reach up to 3000:1, which is much higher than the average 1000:1 of TN and IPS.
High contrast brings rich picture details, sharp text clarity, and the experience of darker black hues, leading to a more
three-dimensional and natural picture.

IPS panels have a faster response time than VA panels but not as fast as TN panels. The color quality offered by IPS panels is considered the best among the three. Richer color details can significantly enhance the viewing experience.

If you value rich colors, prioritize IPS and VA panels.
If rapid screen response time is a top priority, then TN panels are your best bet, followed by IPS.
If you require the best contrast, VA panels are a solid choice.


For more professional purchasing advice, such as recommended panels for gaming, office use, or entertainment, please contact ourprofessional customer service manager.
Company Profile

XIONGSHI DISPLAY

Guangzhou xiongShi Technology Co., Ltd. is a leading company in the display screen industry with 17 years of experience. Our company is equipped with a team of experienced and skilled technology engineers. Our business mainly focuses on SkD and CkD for computer monitors, gaming displays, Digital signage, Outdoor highlight screen. In addition, we wholesale display components such as TV open cell and display modules. We can help you lower your panel cost to gain market competition, for we have deep cooperation with many famous panel suppliers, such as LG, Samsung, BOE and so on, and we have warehouses in Hong kong, Shenzhen, Guangzhou, stocked with most of panels in the market including many unique types, to offer our customers the most flexible batch purchase, fastest delivery speed and most competitive price. our company has a dust-free workshop, automated production line, and international standard production and testing equipment to ensure the quality of our products. We welcome OEM and ODM orders and every year we design different molds to meet the diverse market demands. We also have a large market share in the TV manufacturing and maintenance, digital signage and interactive electronic whiteboard market. Our products and services are available in dozens of countries in North , Western Europe and Southeast Asia. Our first-class product quality and comprehensive after-sales service has been the majority of customers praise. Ifyou are looking for a reliable supplier of display screen products, please feel free to visit us. We warmly welcome friends from all over the world to cooperate with us on a mutually beneficial basis. Thank you.
Partners
Rock-solid partnership
Xiongshi Technology's partners cover major brands in the display panel market, such as LG DISPLAY, Samsung, Sharp, BOE, AUO, INNOLUX, CSOT, PANDA, HKC, etc.

These brands are major suppliers to the TV open cell panel market and over a period of twenty long years, we have established strong relationships with these brands, can provide the high quality and the low price panel product for the global buyer in the first time
Certifications
Strong certification system
As an export-oriented supplier in China, we have a complete qualification certificate, not only to ensure product quality clearance, but also for you in the purchase of TV open cell panels or machine-related products, clear customs and destination countries of government supervision obstacles, smooth import, smooth business activities. Different countries require different certificates, please contact our professional TV open cell panel sales staff in advance for the latest information.
Product Packaging
Step 1
Put one EPE Pad on the Box.
Step 2
Put one OC on the EPE Pad.
Step 3
Put one EPE Pad……one OC and totally 14 ea OC/15 pcs EPE Pad/2 Drier in one Box.
Step 4
Put the 16 Boxes and 2 Covers on the Pallet.
Step 5
Put 4 Paper Corners on the Box and put Wrap film out of the Box and put one top Cover Finally, put the Packing belts.
(The packaging of different products is slightly different for reference only. For details, please contact customer service.)
Logistics Transportation
Mode of transportation
The modes of transportation support sea, land and air.
Logistics service provider
1.UPS2.FEDEX
3.EMS
4.TNT
5.DHL
6.Transportation within Mainland China:LALAMOVE
FAQ
1.Why Choose Our Factory?
We are based in Guangdong, China, start from 2018,sell to Mid East(30.00%),Africa(30.00%),South America(20.00%),North
America(20.00%). We have deep cooperation with many famous panel suppliers, such as LG, Samsung, BOE and so on.

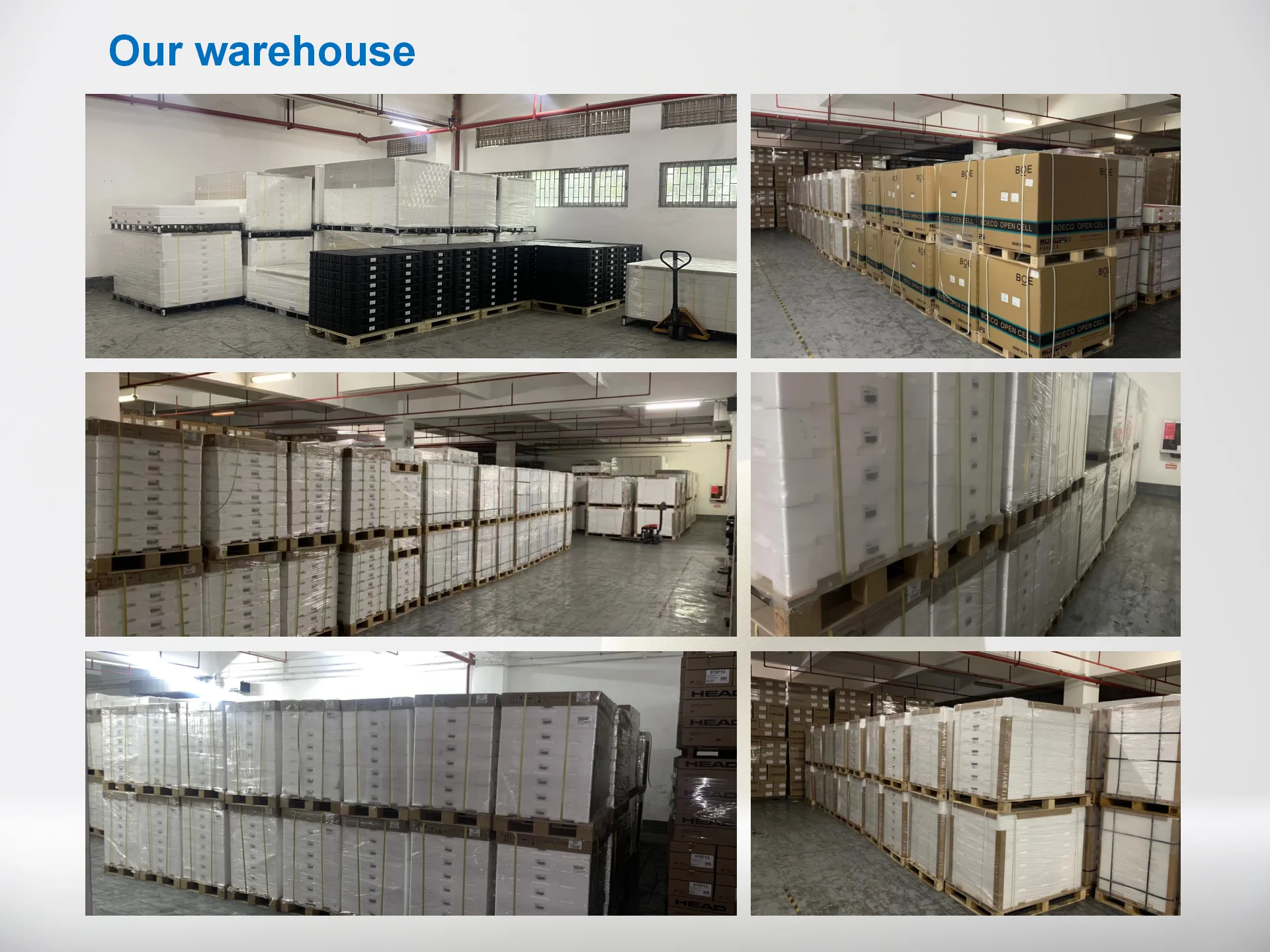

We have warehouses in Hong kong, Shenzhen, Guangzhou, stocked with most of panels in the market including many unique types.

2. What is the quality of your panels?
Our products are original and original packaging. Our company has a large inventory of different brands of LCD panels and can maintain long-term inventory support upon your request.Sources are from manufacture and agent source lines, which are formal channels to ensure the product quality of Grade A, with original package and competitive price.
And we have a perfect working procedure, always before shipment final inspection, Welcome to our company and the warehouse visit.

3.what can you buy from us?
TV open cell panel, modules,PC monitors,Digital signage,Outdoor display.

4. why should you buy from us not from other suppliers?
We adhere to the policy of Rapid sampling,Quality assurance,No worries after
sales,Support customization,Large capacity, Fast delivery.

5.How is your packaging?
We will use foam box and strong wooden box to pack the screen. If you are still concerned, you can purchase insurance.

6.Where do you ship from?
We have warehouses in Hong Kong, Shenzhen and Guangzhou and have quite sufficient stock to guarantee the first delivery. We can ship directly from Hong Kong upon customer request as a way to reduce logistics and customs costs for our customers.

7.Is it enough to provide after-sales guarantee?
Our company provides humanized pre-sales and after-sales services. Before sales, we have professional customer service staff to solve all your problems. And explain any product problems for you. After sale, we provide safe and fastest delivery and sturdy packaging.
Also, we provide long-term warranty and technical support during your use.

8. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese

9. :Is the price displayed on the website The Real transaction price?
A:Prices will be affected by factors such as different delivery locations, purchase quantities, specific requirements, exchange rates, etc.Please contact customer service for order price.
